What's the difference between the JS1000 Concrete Batching Plant and the HZS50 Concrete Batching Plant?

1. Name Origin and Basic Concepts

--HZS50 Concrete Batching Plant

The "HZS50" in the name represents its theoretical production capacity of 50 cubic meters of concrete per hour, making it a common model for small to medium-sized concrete batching plants.

--JS1000 Concrete Batching Plant:

The name comes from its core equipment, the JS1000 mixer (which discharges 1 cubic meter, or 1000 liters), leading some users to also call it the "JS1000 Concrete Batching Plant."

Conclusion:

✅ The JS1000 Concrete Batching Plant and the HZS50 Concrete Batching Plant are essentially the same equipment, simply named differently.

✅ HZS50 Concrete Batching Plant = JS1000 Concrete Batching Plant (JS1000 Main Unit)

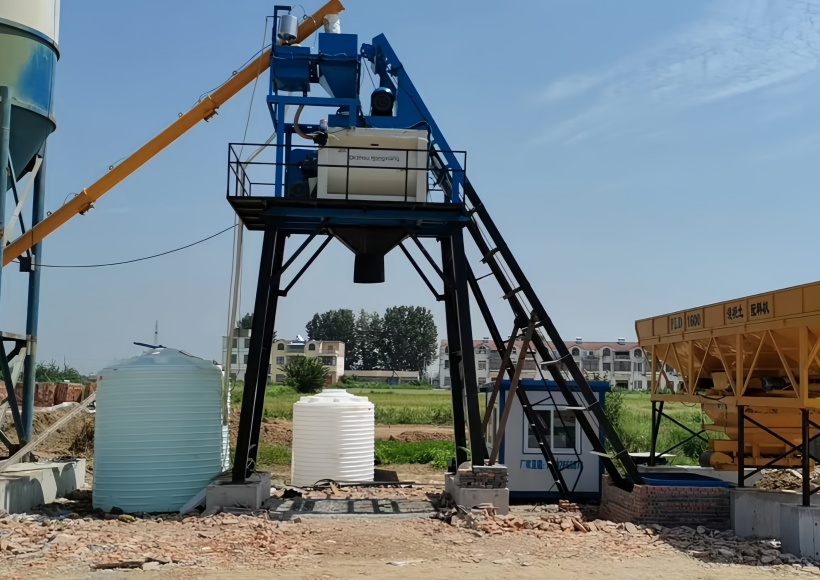

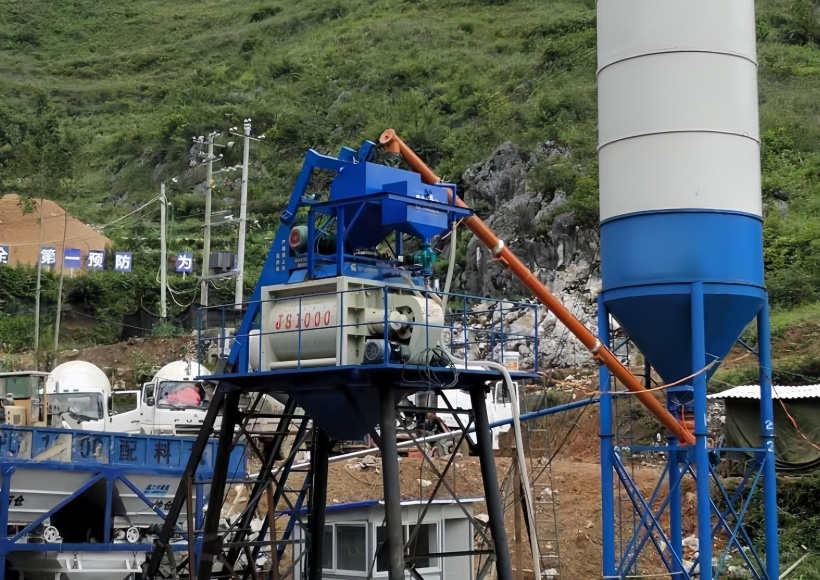

2. Standard Configuration of the HZS50 Concrete Batching Plant (1000 Concrete Batching Plant)

--JS1000 Main Unit (discharging 1 cubic meter of concrete per batch, 50 cycles per hour, theoretical output 50 cubic meters/hour)

--PLD1600 Batching Machine (four or three bins, for automatic weighing of sand and gravel aggregates)

--Weighing System (cement, water, and admixture weighing)

--Screw Conveyor (for cement/fly ash conveying)

--Control System (fully automatic/semi-automatic control to improve production efficiency)

--Other Auxiliary Equipment (conveyor belts, pneumatic system, dust removal device, etc.)

3. Actual Production Capacity

--Theoretical Output: 50 cubic meters/hour (JS1000 mixer x 50 cycles)

--Actual Output: Typically 30-40 cubic meters/hour (affected by factors such as tanker truck transportation, equipment maintenance, and operational efficiency).

4. Application Scenarios

The HZS50 concrete batching plant (1000 kW concrete batching plant) is suitable for:

✔ Small commercial concrete batching plants (for rural construction and township projects)

✔ Small construction projects such as highways, bridges, and water conservancy projects

✔ Concrete product production in precast component plants and pipe pile plants

✔ Temporary projects and mobile concrete batching plant needs

5. FAQs

1: Why can't the HZS50 concrete batching plant reach a production capacity of 50 cubic meters/hour?

- Tank truck access time (2-3 minutes per trip) disrupts production time.

- The equipment cannot operate at full capacity for extended periods (to reduce failure rates).

- Factors such as raw material supply and manual operation affect the plant.

2: What is the difference between the HZS50 and 60 concrete batching plants?

--HZS50 Concrete Batching Plant: JS1000 main unit, 50 cubic meters/hour

- HZS60 Concrete Batching Plant: JS1000 main unit, 60 cubic meters/hour (higher output, larger footprint)

6. Summary

- 1000 Concrete Batching Plant = HZS50 Concrete Batching Plant (different names, but referring to the same equipment).

- Core Configuration: JS1000 mixer + PLD1600 batching machine + automatic weighing system.

- Theoretical output: 50 cubic meters/hour, actual output: 30-40 cubic meters/hour.

- Suitable for small and medium-sized concrete production needs, with high cost-effectiveness and stable operation.

If you are purchasing the HZS50 concrete batching plant (1000 concrete batching plant), we recommend choosing a reputable manufacturer to ensure equipment quality and after-sales service, ensuring long-term stable production.
