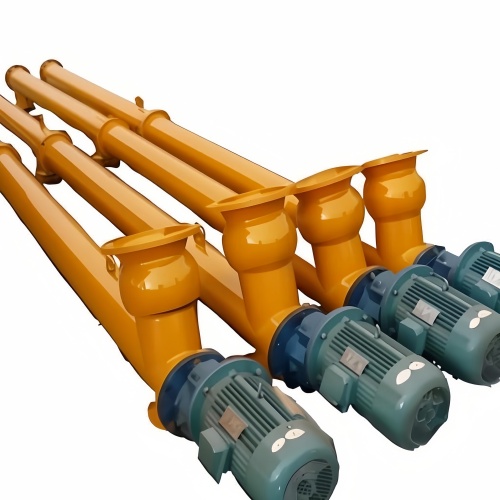

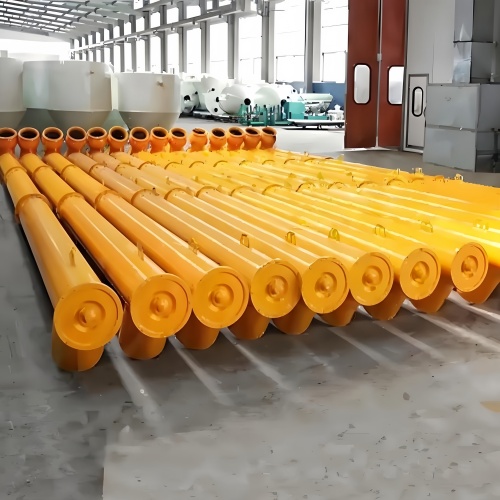

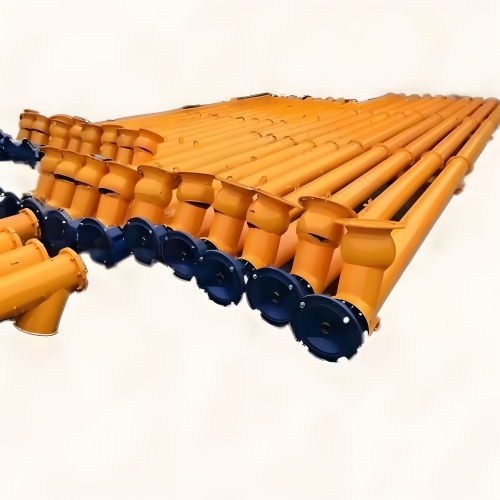

The LSY screw conveyor is a continuous conveying device featuring a closed tubular structure. Its unique spiral design and excellent sealing performance make it widely used for the efficient conveying of various powdered and fine-grained materials, including cement, fly ash, mineral powder, grain, and chemical raw materials.
Main models include: LSY163, LSY219, LSY273, and LSY325.
Screw Conveyor - Expert in Efficient Powder and Granular Conveying Solutions | [Tongxin Machinery]
Screw Conveyor Overview:
We specialize in producing efficient, durable, fully sealed screw conveying equipment suitable for conveying powdered, granular, and small bulk materials in industries such as cement, fine ore, grain, and chemicals. We provide customized solutions and global service.
Excellent Sealing: The fully enclosed tubular structure and high-quality seals completely eliminate dust leakage, protect the working environment, and meet strict environmental and safety standards.
Extremely Wear-Resistant and Durable: The core spiral blades and lining are made of high-strength manganese steel, wear-resistant alloy, or specially treated, significantly extending equipment life and reducing long-term maintenance costs.
Efficient and Stable Conveying: The optimized screw and drive system ensures smooth material flow, no-load start-up, high conveying efficiency, and reduced energy consumption.
Highly Customizable: Supports various mounting options, including horizontal, inclined, and vertical. We can provide a fully customized solution based on your specific operating conditions (length, angle, capacity, material characteristics, etc.). Intelligent control integration: can be easily connected to automated production lines, supports PLC control and remote monitoring, and realizes intelligent and unmanned operation.
Construction Materials: Cement, fly ash, mineral powder, dry mortar, ceramic raw materials
Agricultural and Food: Grains, feed, flour, seeds
Chemical and Plastic: Resin pellets, powdered raw materials, fertilizers
Environmental Energy: Biomass pellets, wood chips, solid waste
LSY series tubular screw conveyor main model parameter table
model | Pipe diameter (mm) | Conveying capacity(t/h) | length (m) | Power range (kW) |
LSY168 | Φ 168 | 20 - 30 | 3.0 - 5.5 | 3 - 4 |
LSY219 | Φ 219 | 40 - 60 | 3 - 12 | 5.5 - 15 |
LSY273 | Φ 273 | 80 - 100 | 3 - 12 | 11 - 18.5 |
LSY325 | Φ 325 | 120 - 150 | 3 - 12 | 18.5 - 30 |
Note: The conveying capacity is calculated based on the conveying of cement (density approximately 1.3t/m³). The actual conveying capacity is affected by material properties, inclination angle, speed, etc. The length can be customized according to requirements.
Tongxin Machinery can provide you with a more suitable production plan based on your actual production needs and on-site conditions.
We have more than 20 years of experience in the production of large mining equipment.
We have an experienced production line design team to meet the processing needs of different materials.

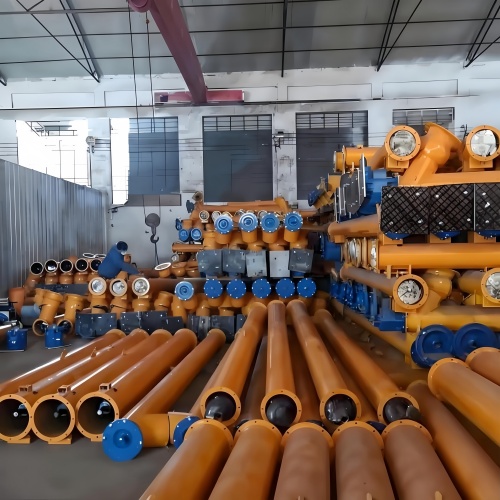

We have two large workshops, a variety of processing equipment and machine tools.
