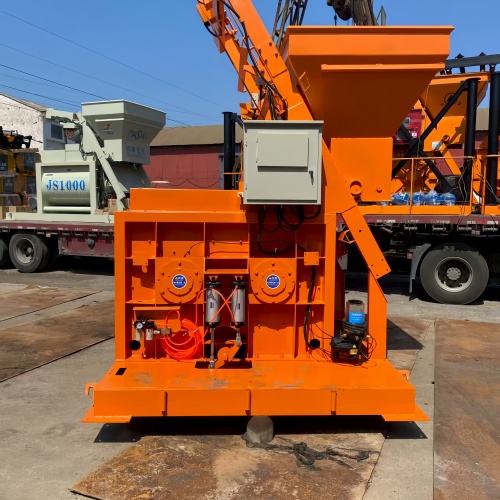

The JS500 concrete mixer is a very common small concrete mixer, capable of producing 0.5 cubic meters of concrete per batch. It features a well-designed design and is easy to use and maintain.
Key Specifications:
Discharge Capacity: 500L per batch.
Feed Capacity: 800L
Mixing Power: 18.5KW
Lifting Power: 5.5KW
Maximum Aggregate Diameter: ≤40/50
JS500 Concrete Mixer Overview

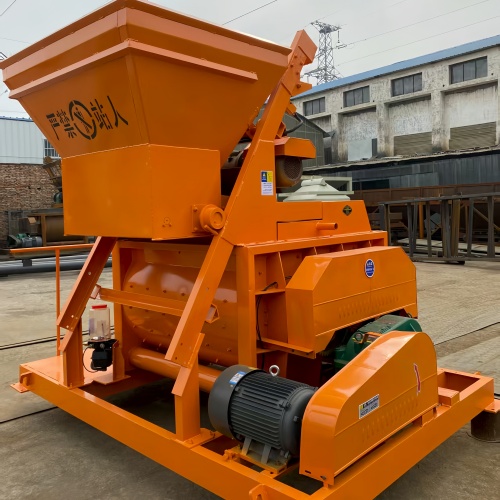

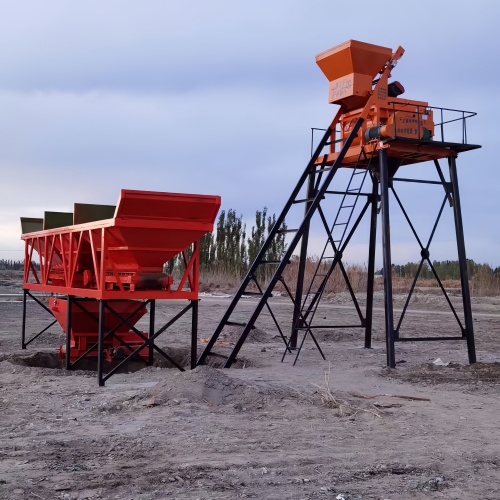

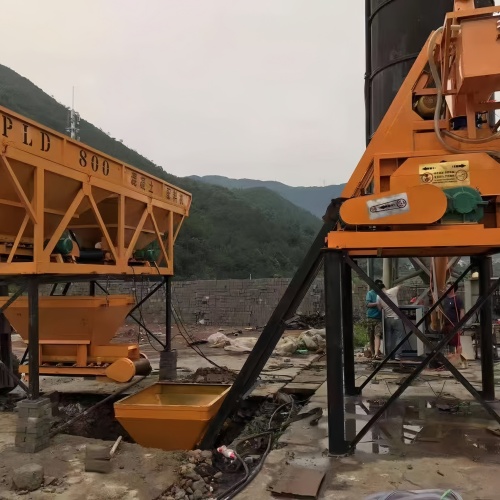

The JS500 concrete mixer is a twin-shaft forced mixer with a discharge capacity of 0.5 cubic meters (500 liters). It can operate independently or be combined with a batching machine (such as the PLD series) to form a simple concrete batching plant (such as the HZS25 plant). Its core features are its twin-shaft design and forced mixing principle. Multiple sets of mixing blades are staggered on the two mixing shafts, providing powerful mixing force and ensuring uniform, high-quality, and efficient concrete mixing.
This mixer is suitable for mixing dry, hard concrete, plastic concrete, flowable concrete, lightweight aggregate concrete, and various mortars. Therefore, it is widely used in small and medium-sized precast component plants, as well as in various projects such as highways, bridges, water conservancy projects, docks, and industrial and civil construction.
Some notable features of the JS500 mixer include:
Excellent mixing quality and high efficiency: The twin-shaft forced mixing method ensures fast and uniform mixing. High reliability and durability: Key components such as the mixing blades and linings are typically made of high-chromium alloy, a wear-resistant material. Shaft-end sealing technology effectively prevents slurry leakage.
Flexible and versatile: It can operate as a standalone unit or as the main unit of a concrete batching plant.
Easy operation and maintenance: An inspection window allows for constant monitoring of concrete production status. The water supply system regulates flow and features comprehensive electrical system protection.
Precast component plants: Produces precast components such as concrete blocks and pipe piles.
Construction projects: Used in buildings, roads, bridges, and water conservancy projects.
Small commercial concrete plants: Can operate as the main unit of small concrete batching plants such as the HZS25.
Q1: How much material can the JS500 mixer discharge per cycle? What is its hourly output?
A: The JS500 is a forced mixer with a 500-liter discharge capacity. It can produce 0.5 cubic meters of precast concrete per cycle. Theoretically, it can produce 20-25 cubic meters per hour, though actual output varies slightly depending on the feed and discharge rates. It is an ideal main unit for small and medium-sized concrete mixing plants.
Q2: Is the JS500 a forced or free-fall mixer? What is its mixing performance?
A: The JS500 is a twin-shaft forced mixer. It offers high mixing intensity and efficiency, achieving uniform mixing of dry, semi-dry, plastic, and various mixes. Its performance is far superior to free-fall mixers, ensuring consistent and reliable concrete quality.
Q3: What is the power system of this mixer? What is its power consumption?
A: The main unit is typically equipped with an 18.5kW electric motor driven by a speed reducer. Total power is approximately 25.5kW (including the winch motor, etc.). Exact power consumption depends on actual workload, but the design is highly efficient and energy-efficient.
Q4: Are the mixer's linings and blades wear-resistant? What is their service life?
A: Key wear-resistant components (linings and mixing blades) are cast from high-chromium wear-resistant alloy or manganese steel, treated with a special process for exceptional wear resistance and long service life. They are also removable for easy replacement and low maintenance.
Q5: Is the equipment complex to operate? Does it require dedicated training?
A: Operation is simple and intuitive. We provide a detailed operator's manual, making the equipment controls easy to understand. We also offer free remote operation guidance, enabling quick learning without the need for complex, long-term dedicated training.
Q6: Can I purchase the main unit separately? Can it be integrated with my existing plant?
A: Yes. We offer separate sales of the JS500 mixer main unit. If you have an older batching machine or control system, our technical team can assist you in evaluating compatibility and developing retrofit options to ensure smooth integration.
Q7: How long is your warranty? How is after-sales service and spare parts supply?
A: We offer a six-month warranty on the entire machine (excluding consumable parts). We promise lifetime technical support and prompt spare parts delivery to ensure continued stable operation of your equipment.
Q8: How much is the price? How can I get a detailed quote?
A: Prices vary depending on configuration (such as loading method, bracket installation, etc.). Please click "Online Consultation" on the right or call our hotline. Our sales manager will provide you with a customized quote within one hour based on your specific needs.
JS500 Concrete Mixer Technical Specifications
Parameter Category | Parameter Name | Parameter Value |
Capacity
| Discharge Capacity | 500 liters |
Feed Capacity | 800 liters
| |
Theoretical Production Rate | ≥ 25 cubic meters/hour | |
Power System | Mixing Motor Power | 18.5 kW |
Lift Motor Power | 5.5 kW
| |
Water Pump Power | 0.75 kW
| |
Total Power | 24.75 kW | |
Aggregate Specifications | Maximum Aggregate Size (Pebbles/Crushed Stone) | 60/40 mm |
Mixing System | Mixing Blade Speed | 35 rpm
|
Number of Mixing Blades | 2 x 7 (14 total)
| |
Cycle Time | Approximately 72 seconds
| |
Machine Weight: Approximately | 3,000 kg |
