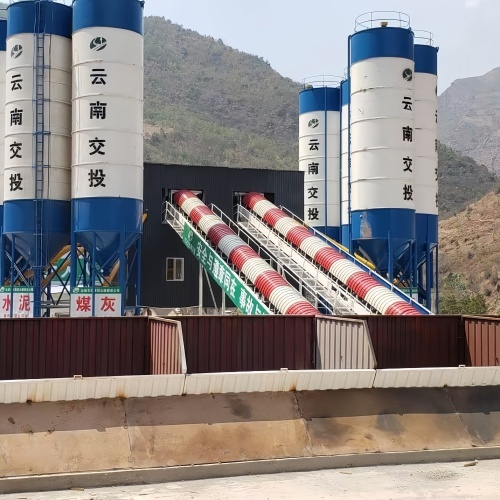

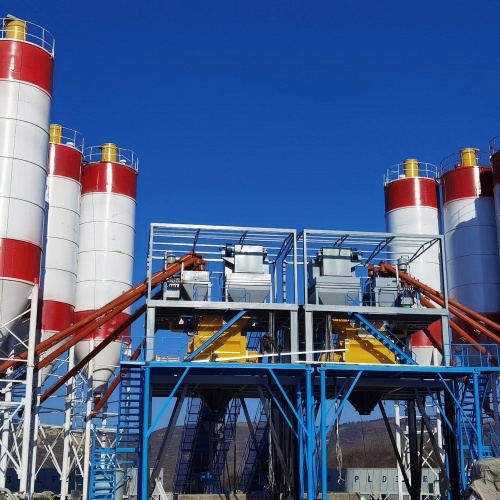

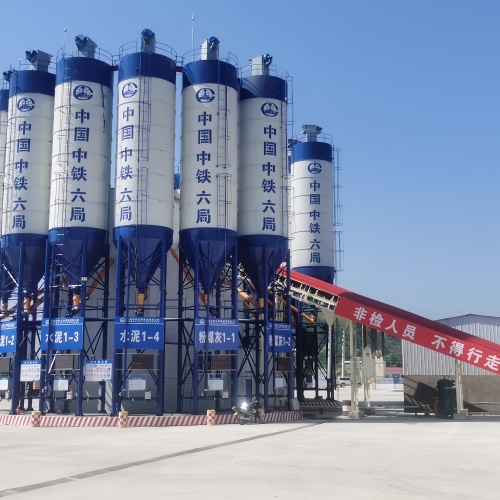

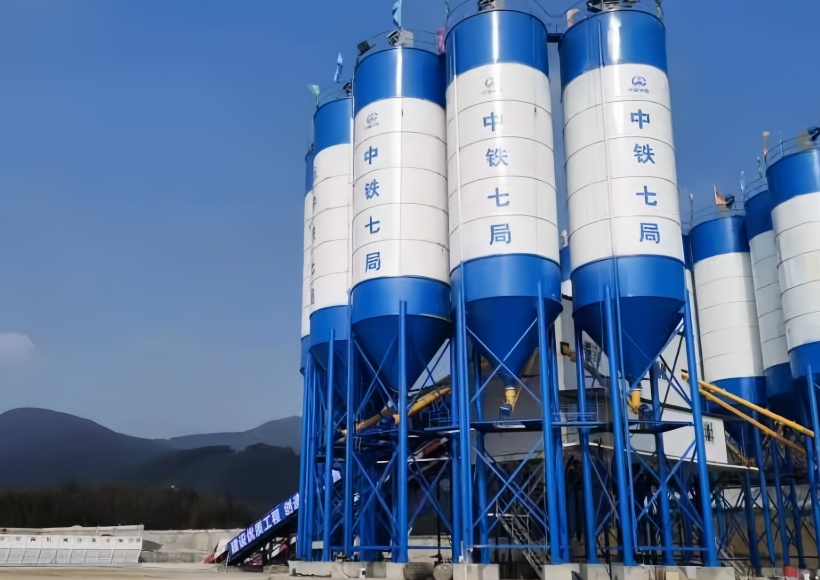

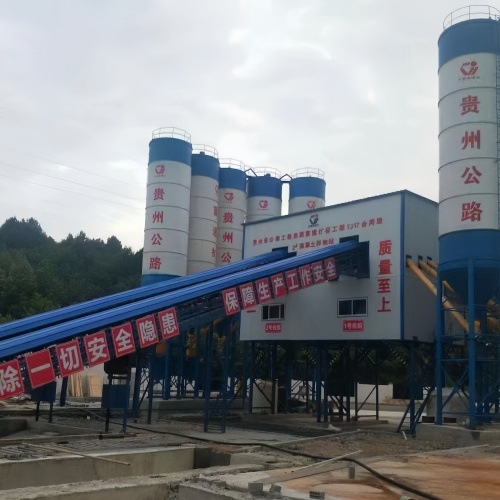

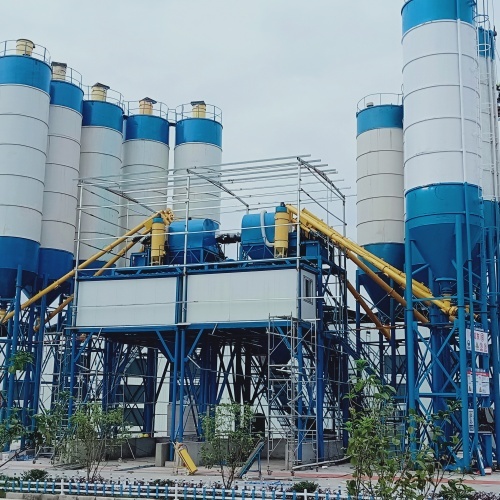

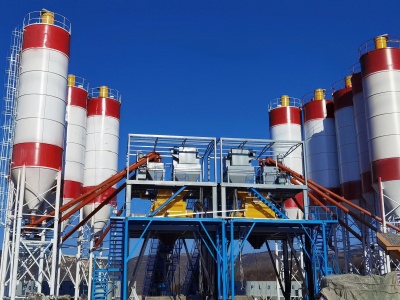

The HZS120 concrete batching plant has a theoretical output of 120 cubic meters per hour. It is equipped with a JS2000 mixer, a belt conveyor and storage silos, a PLD3200 batcher, powder and aqueous solution metering devices, and a computer control system.
Key Parameters:
Output: 120 cubic meters per hour
Mixer: JS12000
Batching Capacity: 2 cubic meters per batch
Batcher: PLD3200 (standard with four silos)
Powder Silos: Four 100-ton cement silos (customizable)
Controls: Fully computerized (including printing and monitoring)
The HZS120 concrete batching plant is an advanced, efficient, environmentally friendly, and scalable concrete production facility. Its modular structure and intelligent control make it widely applicable in various infrastructure and commercial concrete mixing applications.
Core Components and Workflow
The HZS120 concrete batching plant consists of several highly coordinated systems:
- Mixing Unit: JS2000 twin-shaft forced mixer with a batch capacity of 2 cubic meters, meeting various concrete mixing needs.
- Batching System: PLD3200 concrete batcher, capable of independently and accurately batching a variety of materials.
- Measuring System: A fully electronic weighing system with a metering accuracy of ±1% for cement, water, and admixtures, and ±2% for aggregates.
- Conveying System: Aggregates are conveyed using flat, herringbone, or trough belt conveyors; powder materials are conveyed using LSY screw conveyors, ensuring efficient and stable conveying.
- Control System: Fully automatic microcomputer control with recipe storage, automatic compensation, process monitoring, and diagnostic functions. The control room is equipped with air conditioning, a computer, a printer, and a monitoring system to optimize human-machine collaboration. - Storage System: Includes an aggregate batching machine and powder tanks (typically configured with four 100-ton capacities) to meet continuous production needs.
- Pneumatic System: An air compressor and air tank provide a stable air supply for pneumatic components.
- Environmental Protection Equipment: Optional equipment includes a main unit and silo roof dust collector, sand and gravel separator, sedimentation tank, and wastewater recovery system to ensure clean production.
Workflow: Aggregates and powders are metered via belt conveyors and screw conveyors, respectively, while the aqueous solution is pumped via a water pump. After independent metering, the aggregates enter the mixer for uniform mixing before discharge.
Product Advantages
- Efficient and Reliable: Theoretical output is 120 cubic meters per hour. Key components utilize internationally renowned electrical appliances and high-chromium wear-resistant materials to ensure continuous and stable operation.
- Precision Mixing: Independent metering and forced mixing ensure uniform concrete quality that meets specified strength standards.
- Intelligent Automation: Utilizes an automated control and monitoring system to reduce worker workload and improve production efficiency. - Environmentally Friendly: The mixer and conveyor belt feature a fully enclosed structure, employ dust and noise reduction technologies, and are equipped with a wastewater and waste recycling system, significantly reducing pollution.
Environmental Protection
This equipment utilizes an enclosed structure, centralized dust removal, low-noise equipment, sand and gravel separation, and a wastewater recycling system to comprehensively control dust, noise, and waste, supporting sustainable development.
Main Applications
- Large-Scale Commercial Concrete Batching Plants
- Medium-to-Large-Scale Projects Such as High-Rise Buildings and Factories
- Infrastructure Projects Such as Highways, Railways, Bridges, Water Conservancy Projects, and Ports
- Ready-Mixed Concrete Batching Plants
The HZS120 concrete batching plant boasts mature technology, stable performance, and a high degree of automation, making it an ideal choice for producing high-quality concrete.
HZS120 Concrete Batching Plant Key Technical Parameters
Theoretical Production Capacity | 120 m³/h | Concrete Mixer | JS2000
|
Concrete Mixer Power | 2 x 37 kW
| Batcher | PLD3200
|
Cement Silos | 2x 100T
| Maximum Aggregate Diameter | ≤80 mm
|
Aggregate Metering Accuracy | ±2% | Cement Metering Accuracy | ±1% |
Water Metering Accuracy | ±1% | Admixture Metering Accuracy | ±1% |
Total Power | 236 kW
| Discharge Height | 4.2m |
