Concrete Batching Plant

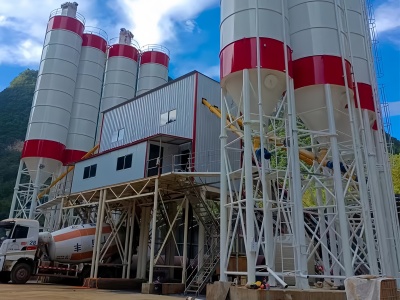

A concrete mixing plant is a complete set of equipment that automatically measures and mixes cement, aggregate, water, and admixtures in the correct proportions to produce concrete. It primarily consists of a main mixer, batching system, conveying system, and control system. Widely used in commercial concrete mixing and infrastructure construction, it features a high degree of automation and high production efficiency.
The most significant feature of foundation-free concrete batching plants is that they eliminate the need for complex reinforced concrete foundation construction. Their modular design optimizes the overall structure and load distribution, enabling rapid installation and reuse. This significantly shortens project construction cycles and reduces initial civil engineering and demolition costs.
Common models include the HZS90, HZS120, and HZS180.

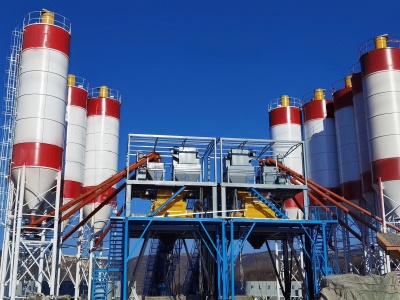

The HZS180 concrete batching plant boasts a production capacity of 180 cubic meters per hour, combining high efficiency, precision, and automation. It is equipped with a JS3000 forced mixer, a PLD4800 four-bin batcher, a belt conveyor, storage silos, and powder and liquid metering devices. It utilizes a fully automatic computer control system with production monitoring and data printing capabilities.
Main Features:
– Production Capacity: 180 cubic meters per hour
– Main Unit: JS3000 Mixer
– Batching Machine: PLD4800 (four-bin independent metering)
– Batch Capacity: 3 cubic meters
– Powder Silos: 4 x 100-ton capacity (optional)
– Control System: Fully Automatic (including monitoring and printing)

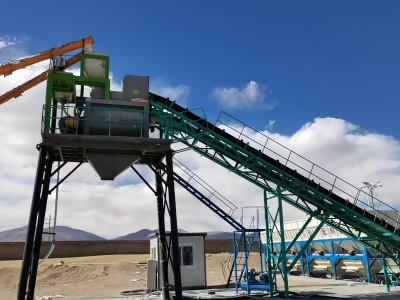

The HZS50 concrete batching plant is a very common small concrete batching plant, capable of producing 50 cubic meters of concrete per hour. Its core equipment is the JS1000 forced concrete mixer, which ensures uniform concrete quality. This equipment offers high efficiency and low investment costs.
Key Parameters:
Productivity: Theoretical output is 50 cubic meters per hour.
Mixer: JS1000 mixer with a discharge capacity of 1 cubic meter.
Batching System:
Aggregate Silos (sand and gravel): Typically have four silos, fed by conveyor belts.
Powder Silos (cement, fly ash): Typically have two to three vertical storage tanks, fed by screw conveyors.
Water and Admixtures: Water and admixtures are pumped to a weighing hopper for metering.
Total Power: The entire plant operates at approximately 98Â kilowatts.
Equipment Footprint: Due to its modular design, the overall layout is relatively compact.
The HZS60 concrete batching plant is a fully automated concrete production facility with a theoretical production capacity of 60 cubic meters per hour. Based on the JS1000 forced batching plant, it is equipped with a high-precision electronic metering system and a computerized automatic control system, enabling the stable production of high-quality commercial concrete of various grades.
Core Parameters:
Productivity: 60 cubic meters per hour (theoretical value)
Mixer: JS1000
Discharge Capacity: 1000 liters (1 cubic meter per batch)
Batcher: PLD1600
Powder Silo: Three 100-ton storage tanks standard (customizable)
Conveyor: Aggregate belt conveyor
Control: Fully automatic computer control
The HZS75 concrete batching plant is a medium-sized, fully automated concrete production facility with a production capacity of 75 cubic meters per hour. It utilizes a JS1500 mixer, equipped with a PLD2400 batching machine and an automatic control system, and is capable of producing concrete with a variety of mix ratios.
Key Parameters:
Output: 75 cubic meters per hour
Mixer: JS1500
Discharge Volume: 1500 liters per batch
Batching Machine: PLD2400
Powder Silos: 3 x 100ton capacity (customizable)
Control: Fully automatic
The HZS90Â concrete batching plant has an output of 90Â cubic meters per hour. Equipped with a JS1500 mixer, a belt conveyor and storage silo, a PLD2400 batcher, and a computer control system, it can produce concrete in a variety of mix proportions.
Key Parameters:
Output: 90Â cubic meters per hour
Mixer: JS1500
Batch capacity: 1500 liters per batch
Batcher: PLD2400
Powder silos: Three 100-ton capacity silos (customizable)
Control: Fully automatic
What is a concrete batching plant?
A concrete batching plant is a fully automated system specifically designed for producing ready-mixed concrete. Through precise batching, efficient mixing, and centralized control, it enables large-scale, standardized concrete production.
Core Systems
– Mixing System: Forced mixing device ensures uniform and efficient mixing.
– Batching System: Multiple independent metering silos with an accuracy of ±1%.
– Control Center: PLC + industrial computer automated control, enabling one-click recipe access.
– Conveyor System: Belt/screw conveyors for automated material transportation.
Product Series
– Ready-mix Concrete Plant: HZS Series, with a production capacity range of 60-270 cubic meters per hour.
– Engineering Station: Customizable to specific project requirements.

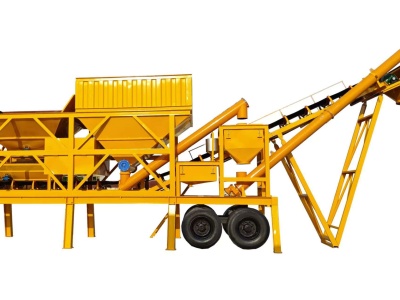

– Mobile Concrete Plant: Modular design for quick on-site installation.
Technical Advantages
– Automated Production: Intelligent control throughout the entire process, reducing manual intervention.
– Environmentally Friendly: Optional dust removal and wastewater recovery systems.
– Stable and Reliable: Key components are from internationally renowned brands. Application Areas
Ready-mix concrete supply, large-scale engineering construction, precast component production, hydropower and transportation, and other construction scenarios that place high demands on high-quality concrete. Tongxin Machinery provides comprehensive services from concept design and equipment manufacturing to installation and commissioning, helping customers build efficient and environmentally friendly concrete production bases.
