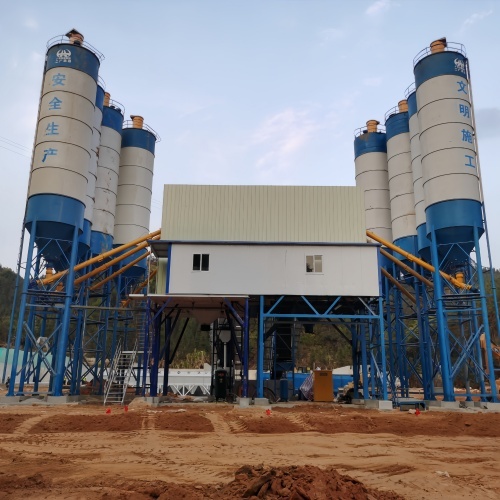

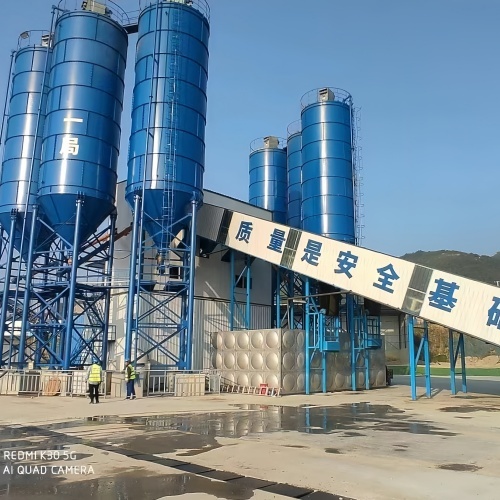

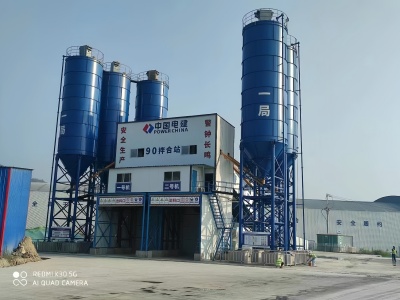

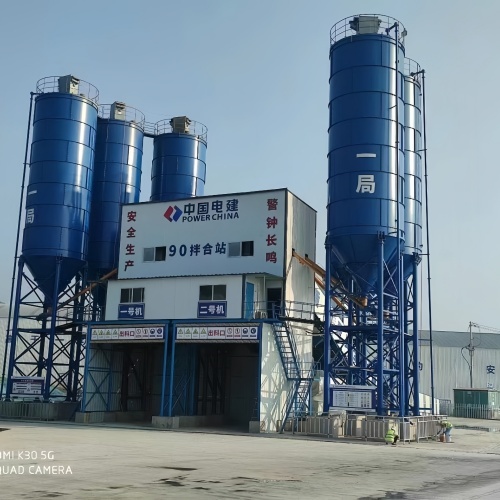

The HZS90 concrete batching plant has an output of 90 cubic meters per hour. Equipped with a JS1500 mixer, a belt conveyor and storage silo, a PLD2400 batcher, and a computer control system, it can produce concrete in a variety of mix proportions.
Key Parameters:
Output: 90 cubic meters per hour
Mixer: JS1500
Batch capacity: 1500 liters per batch
Batcher: PLD2400
Powder silos: Three 100-ton capacity silos (customizable)
Control: Fully automatic
The HZS90 concrete batching plant primarily consists of the following system modules:
Mixing System: The core component is the JS1500 twin-shaft forced mixer, ensuring high-quality and efficient concrete mixing.
Batching System: The PLD2400 independent metering concrete batcher is used for storage and batching of sand and gravel aggregates.
Conveying System:Aggregate conveying: An inclined belt conveyor is typically used, offering high throughput and stable operation.
Powder Conveying: An LSY-type screw conveyor transports cement, fly ash, and other materials from the cement silo to the weighing scale.
Weighing System: All raw materials (aggregates, powder, water, and admixtures) are independently metered using high-precision electronic scales.
Storage System: Includes the concrete batcher and cement silos. The standard configuration includes three 100-ton cement silos.
Control System: A fully automatic microcomputer control system enables functions such as recipe storage, automatic compensation, production process monitoring, fault diagnosis, and report printing.
Pneumatic System: An air compressor provides high-pressure air to the air storage tanks, cylinders, and valves.
Environmental Protection Equipment (Optional): Dust removal, sand and gravel separators, and wastewater recovery systems are available based on environmental requirements.
The general workflow is as follows: Aggregates are batched by a batching machine and transported to a storage silo via a belt conveyor; powdered materials are transported via a screw conveyor; all raw materials are mixed in a mixer; and finally, concrete is discharged.
High Efficiency: With a theoretical output of 90 cubic meters per hour and a cycle time of 60 seconds, it can effectively meet the concrete needs of medium-sized projects.
Precise Metering and Reliable Quality: Each raw material is individually and accurately metered to ensure consistent concrete quality.
Highly Automated: From batching to discharging, the entire process is fully automated, reducing manual operation and errors.
High Reliability: Major electrical components are typically imported or from well-known brands (such as Schneider). Key components, such as the mixer lining and mixing blades, are made of wear-resistant materials for durability.
High Scalability: The number of powder silos and environmental protection devices can be customized according to needs.
The HZS90 concrete batching plant is suitable for:
Medium-sized ready-mix concrete batching plants
Large and medium-sized construction projects (such as residential communities and factories)
Infrastructure projects such as highways, bridges, and water conservancy projects
The HZS90 concrete batching plant is a medium-sized concrete production plant with mature technology, stable performance, and a high degree of automation. It is an ideal choice for a wide range of medium-sized construction projects and ready-mix concrete producers.
HZS90 Concrete Batching Plant Key Technical Parameters
Theoretical Production Capacity | 90 m³/h | Concrete Mixer | JS1500
|
Concrete Mixer Power | 2 x 30 kW
| Batcher | PLD2400
|
Cement Silos | 3 x 100T
| Maximum Aggregate Diameter | ≤80 mm
|
Aggregate Metering Accuracy | ±2% | Cement Metering Accuracy | ±1% |
Water Metering Accuracy | ±1% | Admixture Metering Accuracy | ±1% |
Total Power | 145 kW
| Discharge Height | 3.8m |
