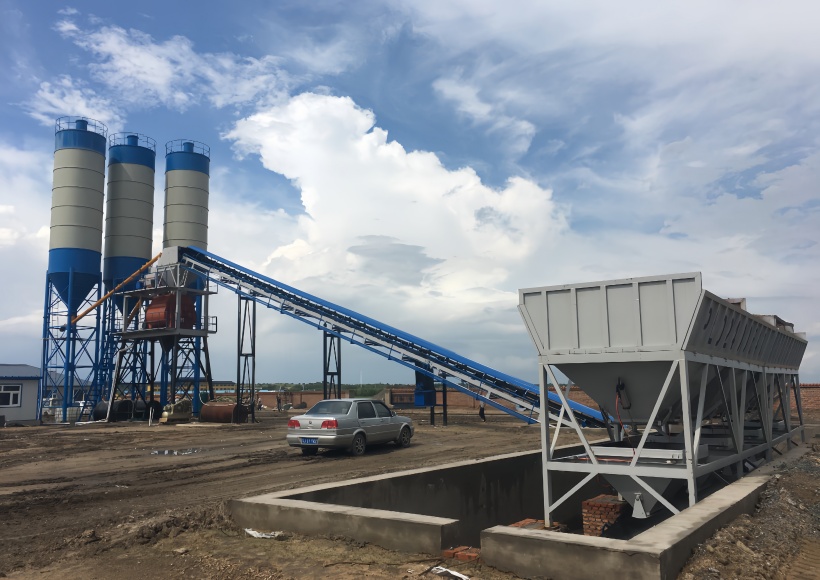

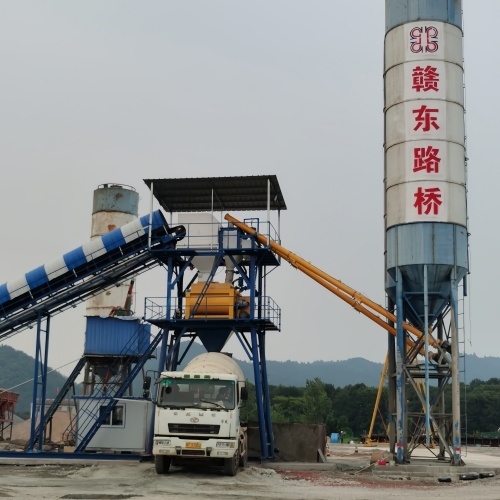

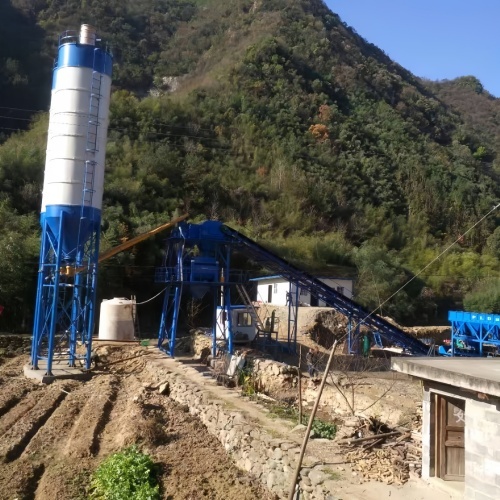

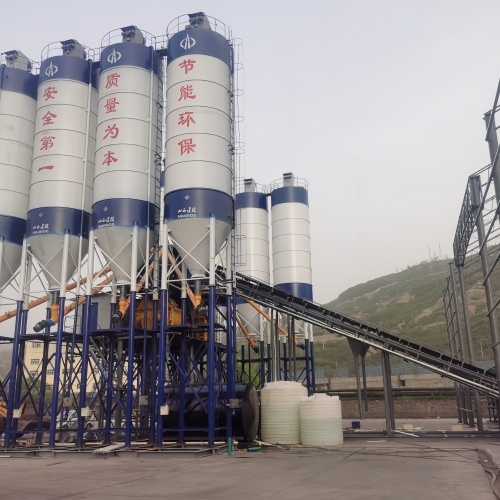

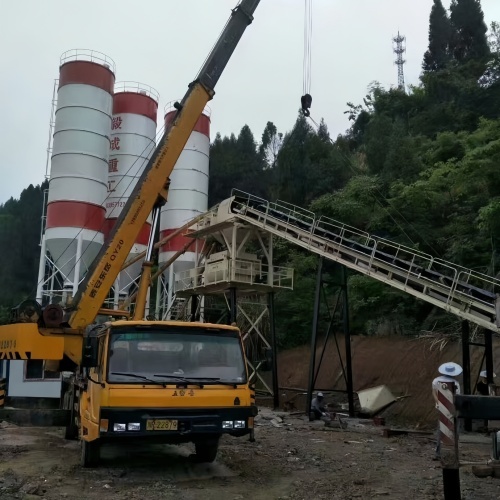

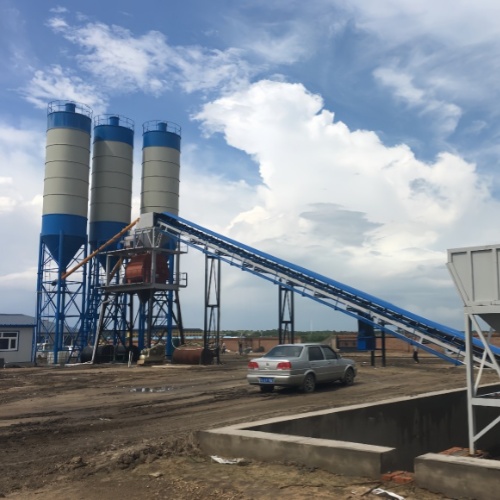

HZS60 Concrete Batching Plant

The HZS60 concrete batching plant consists of the following modules:

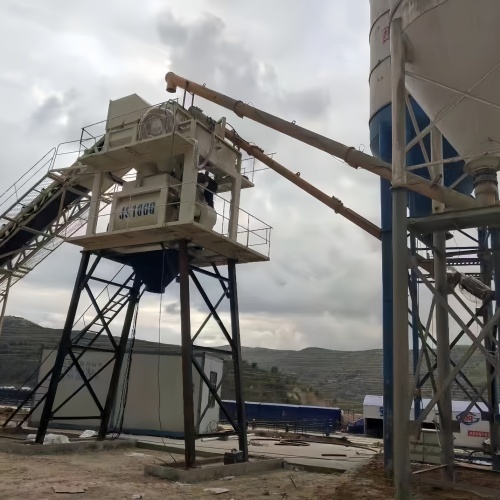

Mixing System: The core component is the JS1000 twin-shaft forced mixer, capable of producing concrete with a variety of mix ratios.

Batching System: The PLD1600 concrete batcher is responsible for storing and batching sand and gravel aggregates.

Aggregate Conveying System: Belt conveyors are typically used, offering high conveying efficiency and stable operation.

Powder Conveying System: Screw conveyors transport cement, fly ash, and other materials from the cement silo to the weighing system.

Weighing System: All raw materials (aggregates, powders, water, and admixtures) are independently measured using high-precision electronic scales.

Storage System: Includes the batching machine (typically 4 x 12 m³) and cement silo.

Control System: The fully automatic computer control system serves as the system's brain, enabling functions such as recipe storage, automatic head compensation, production process monitoring, fault diagnosis, and report printing.

Pneumatic System: The air compressor provides high-pressure air to components such as cylinders and pneumatic valves, controlling the opening and closing of various material gates.

The overall workflow is as follows:

 Aggregates are batched by a batching machine and conveyed via a belt conveyor; powdered materials are conveyed via a screw conveyor. All raw materials are precisely measured and fed into the mixer for mixing.

 Key Features and Benefits

Belt Conveyor: Belt conveyors transport aggregates smoothly and efficiently, saving time and improving overall production efficiency.

Precise Metering and Reliable Quality: Each raw material is individually and precisely measured (±2% for aggregates, ±1% for powdered materials, water, and admixtures) to ensure uniform concrete.

High Level of Automation: From batching to unloading, the entire process is fully automated, reducing manual operations and human error, and facilitating management.

Eco-Friendly Design:

The HZS60 concrete batching plant features an environmentally friendly design:

Dust Control: From loading, batching, metering, mixing, to unloading, powdered materials are handled in a closed environment. The plant utilizes high-quality dust collectors.

Noise Control: The enclosed plant and belt conveyors effectively reduce noise pollution.

Application Scenarios

The HZS60 concrete batching plant is suitable for:

Small and medium-sized commercial concrete batching plants

Various construction projects (e.g., residential buildings, factories)

Infrastructure projects such as roads, bridges, airports, ports, and hydropower stations

The HZS60 concrete batching plant is a small-scale concrete production machine featuring mature technology, stable performance, a high degree of automation, and excellent environmental performance. It is an ideal choice for a wide range of construction projects and ready-mixed concrete producers.
