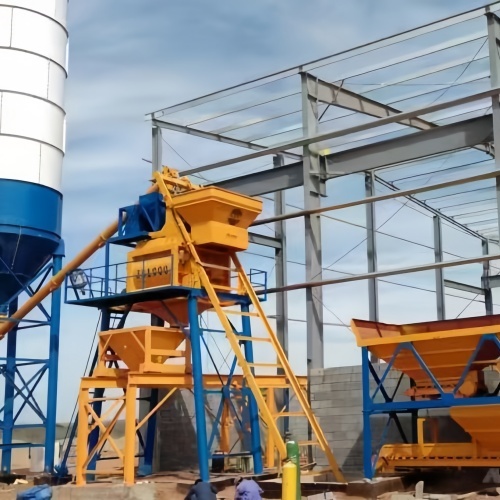

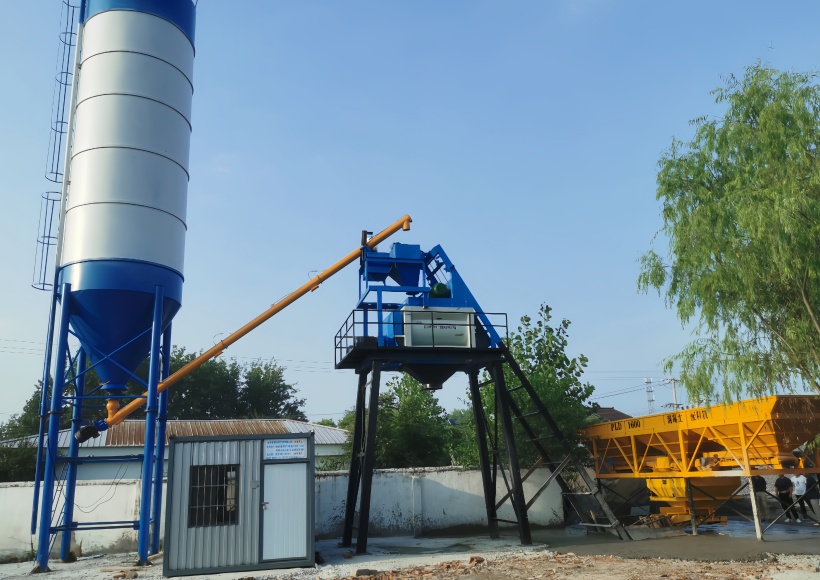

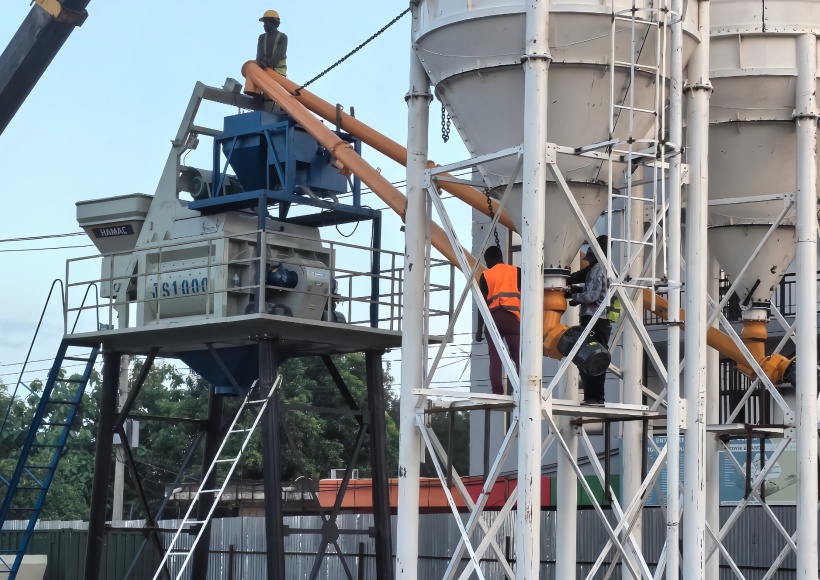

The HZS50 concrete batching plant is a very common small concrete batching plant, capable of producing 50 cubic meters of concrete per hour. Its core equipment is the JS1000 forced concrete mixer, which ensures uniform concrete quality. This equipment offers high efficiency and low investment costs.
Key Parameters:
Productivity: Theoretical output is 50 cubic meters per hour.

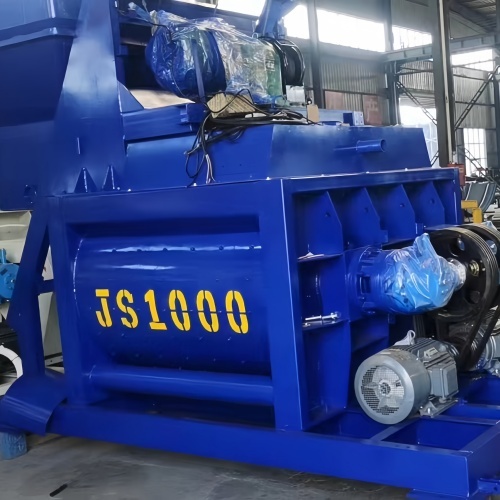

Mixer: JS1000 mixer with a discharge capacity of 1 cubic meter.
Batching System:
Aggregate Silos (sand and gravel): Typically have four silos, fed by conveyor belts.
Powder Silos (cement, fly ash): Typically have two to three vertical storage tanks, fed by screw conveyors.
Water and Admixtures: Water and admixtures are pumped to a weighing hopper for metering.
Total Power: The entire plant operates at approximately 98 kilowatts.
Equipment Footprint: Due to its modular design, the overall layout is relatively compact.
Core Advantages of the HZS50 Concrete Batching Plant

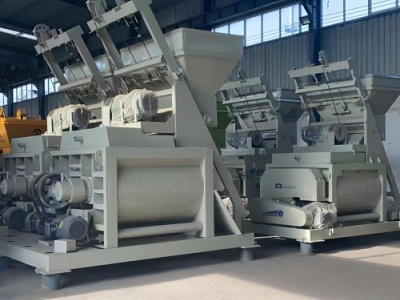

Efficient Production: With a theoretical output of 50 cubic meters per hour, the main mixer uses a JS1000 twin-shaft forced mixer, ensuring high-quality and efficient concrete mixing.
Precise Metering: The batching system utilizes an electronic scale, achieving an aggregate weighing accuracy of ±2%, and cement, water, and admixture weighing accuracy of ±1%, ensuring precise concrete mix proportions.
Modular Design: The entire plant adopts a modular structure, making it easy to install and relocate, allowing for rapid deployment and significantly reducing downtime.
Adaptability: The discharge height is typically 3.8 meters, compatible with a variety of concrete mixer trucks. It can handle aggregates with a particle size of ≤80 mm, meeting the production requirements of various concrete grades.
Intelligent Control: The fully automatic control system features real-time display of the production process, information storage, automatic printing, and automatic drop compensation, ensuring ease of operation and high reliability.
HZS50 Concrete Batching Plant Key Technical Parameters
Theoretical Production Capacity | 50 m³/h | Concrete Mixer | JS1000
|
Concrete Mixer Power | 2 x 18.5 kW
| Batcher | PLD1600
|
Cement Silos | 2 x 100T
| Maximum Aggregate Diameter | ≤80 mm
|
Aggregate Metering Accuracy | ±2% | Cement Metering Accuracy | ±1% |
Water Metering Accuracy | ±1% | Admixture Metering Accuracy | ±1% |
Total Power | 98 kW
| Discharge Height | 3.8m |
Tongxin Machinery can provide you with a more suitable production plan based on your actual production needs and on-site conditions.
We have more than 20 years of experience in the production of large mining equipment.
We have an experienced production line design team to meet the processing needs of different materials.
We have two large workshops, a variety of processing equipment and machine tools.
The company strives to provide customers with preferential prices and payment methods to meet customer needs.
If you're looking for a concrete batching plant, stabilized soil batching plant, or other construction machinery and equipment, please contact us and we'll respond within 24 hours.
